FM Radio Station Equipments
A complete FM broadcasting package is an all-in-one solution. It typically includes the FM transmitter, broadcast antenna system, coaxial cable, audio mixer, audio processor, studio microphone, monitor headphones, monitor speakers, microphone stand, and other essential accessories.
What Equipment Do I Need to Start an FM Radio Station?
Equip your FM radio station with everything you need, from FM transmitters, broadcast antennas, and coaxial cables to STL links, RDS encoders, audio mixers, processors, microphones, headphones, and RF adapters for a complete broadcasting setup.
FM Broadcast Transmitter
Generates and amplifies your FM signal. Power sets your coverage range.
30W-20KW · 87.5-108 MHz · FCC & CE
FM Broadcast Antenna
Radiates your signal into the air. More bays mean higher gain and wider coverage.
Single to multi-bay · 30W-20KW+
Coaxial Cable
Connects transmitter to antenna with minimal signal loss. Supplied pre-terminated.
Low-loss · 30m lengths · N-type connectors
Audio Processor
Makes your broadcast loud, clear and consistent on every radio.
Multi-band processing · Overmodulation protection

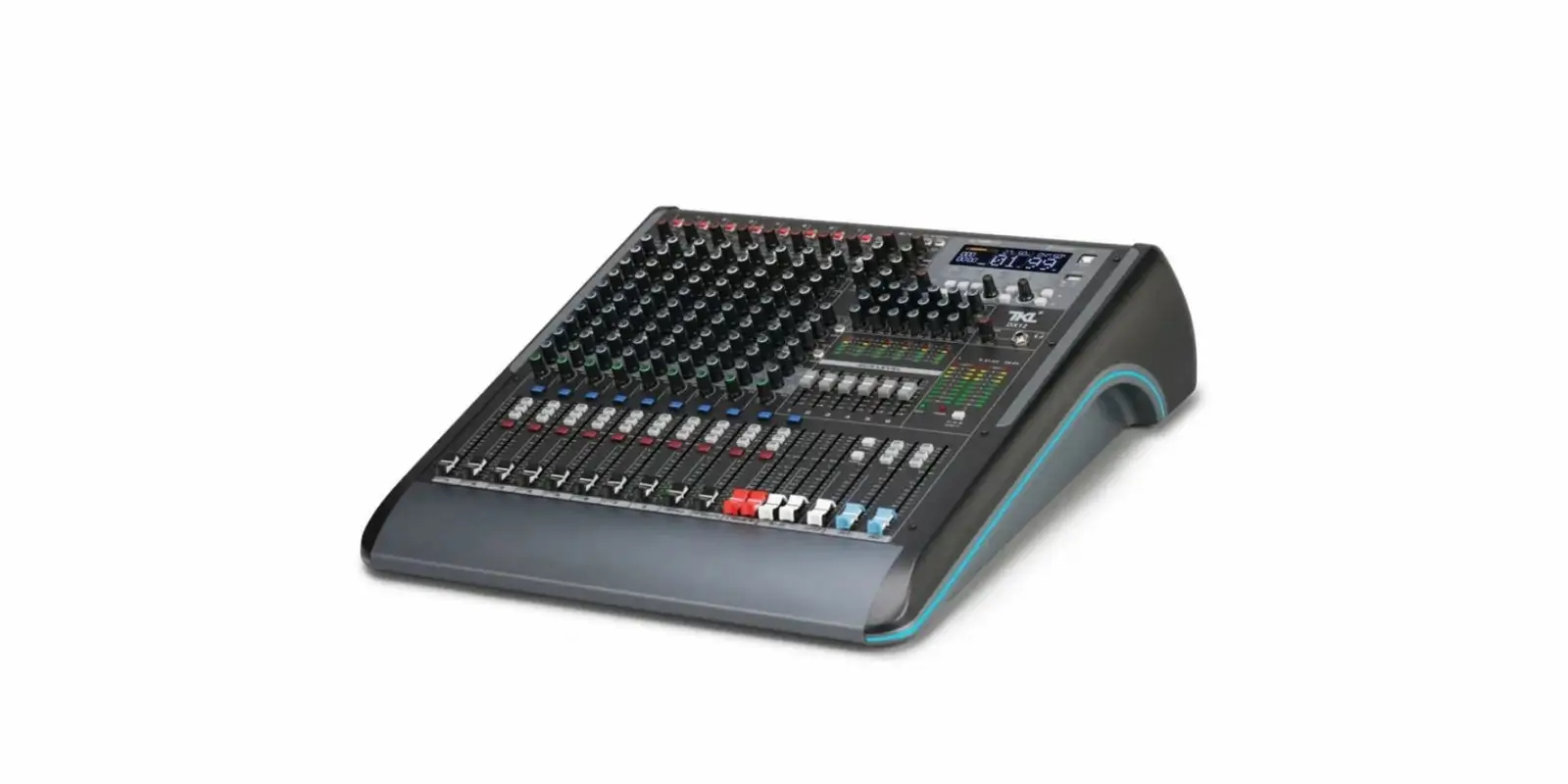

Broadcast Audio Mixer
Your control center for mics, music and phone sources, with live level control.
XLR and line inputs · 4 to 32 channels

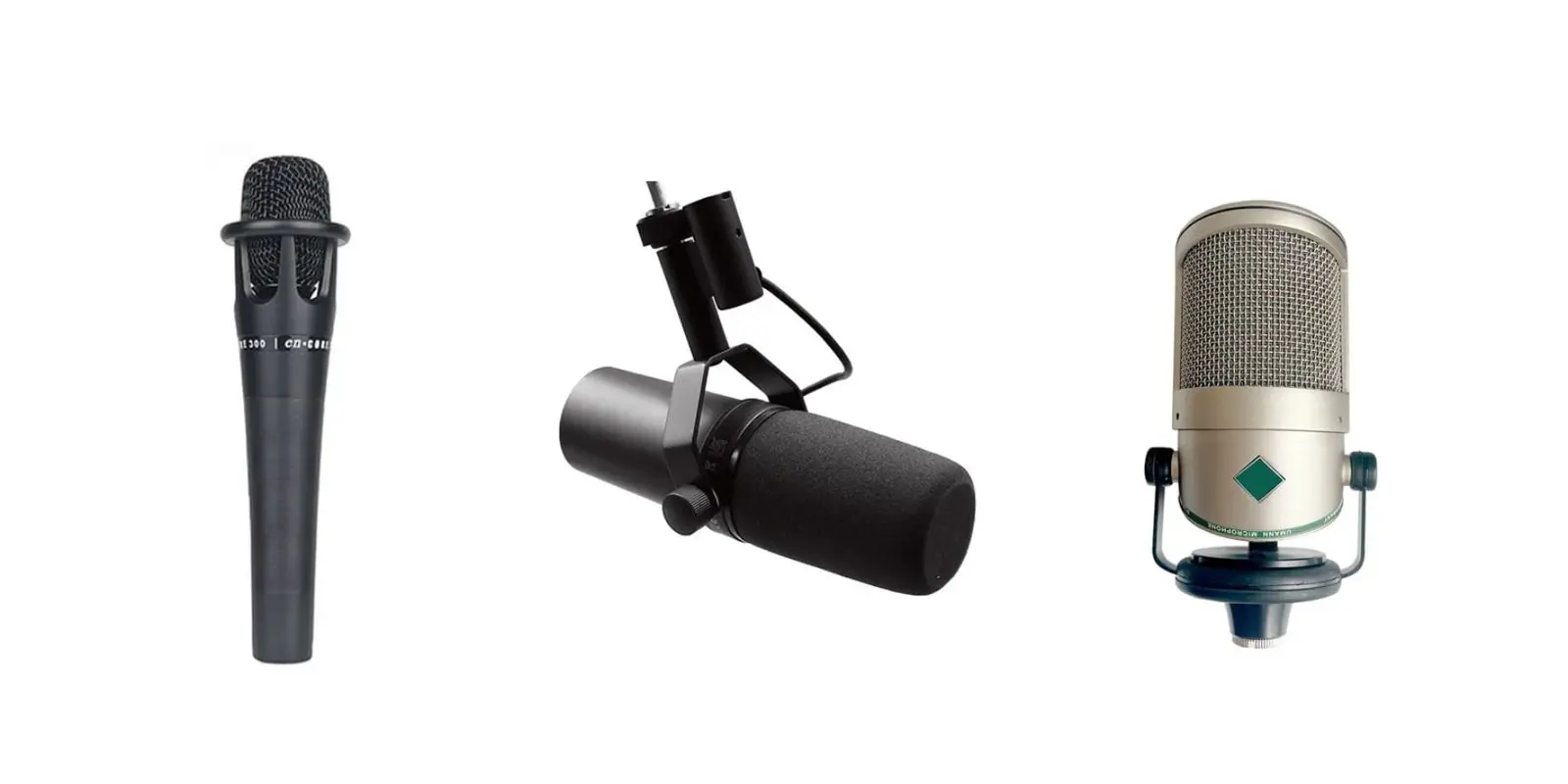

Microphones
Broadcast-grade mics that capture clear voice for live presenters.
Cardioid pattern · Balanced XLR · Shock mount

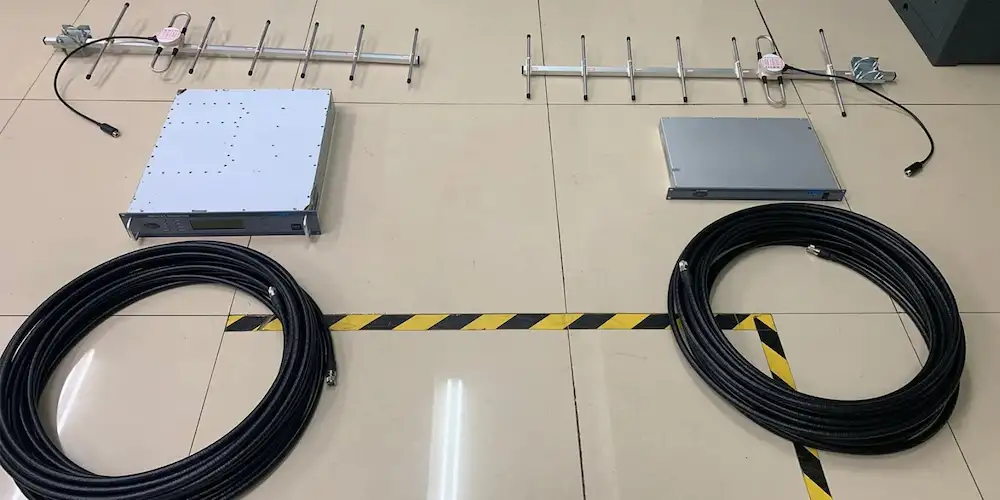

STL System
Sends audio wirelessly from your studio to a remote transmitter site.
IP or RF link · Low latency

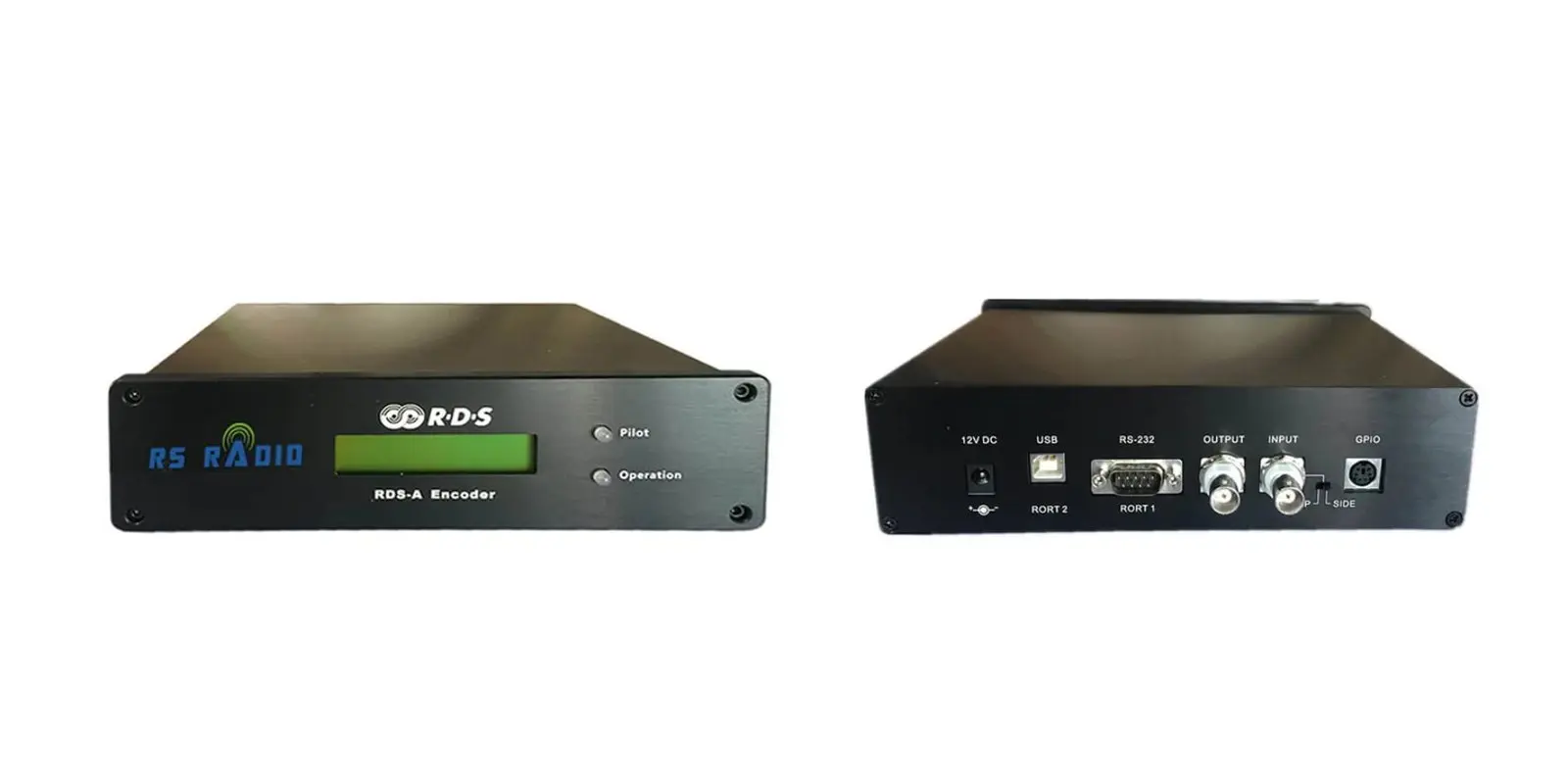

RDS Encoder
Shows your station name and song info on car radios and digital FM receivers.
PS & RadioText · USB/RS-232 · Works with all FM transmitters

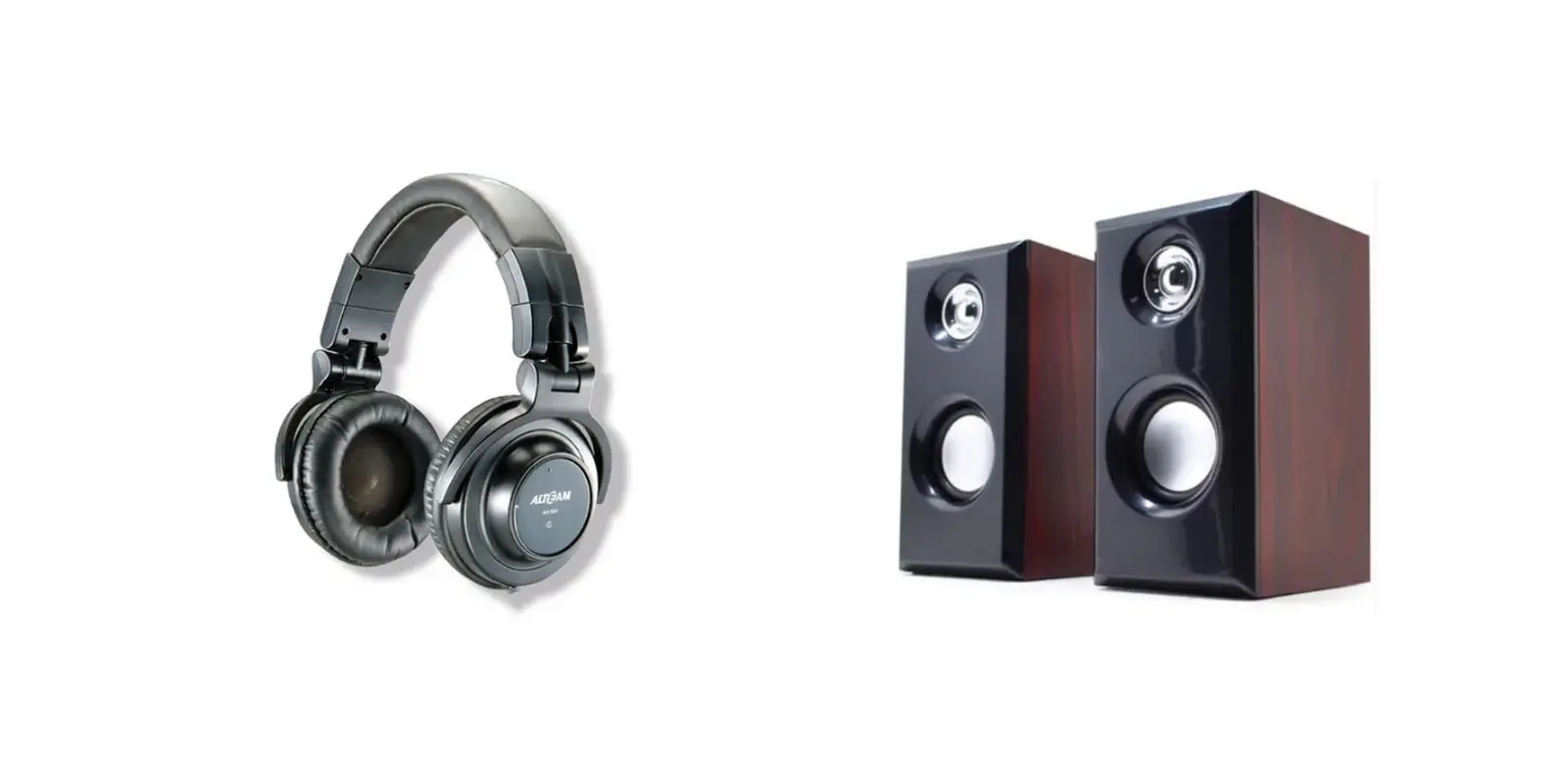

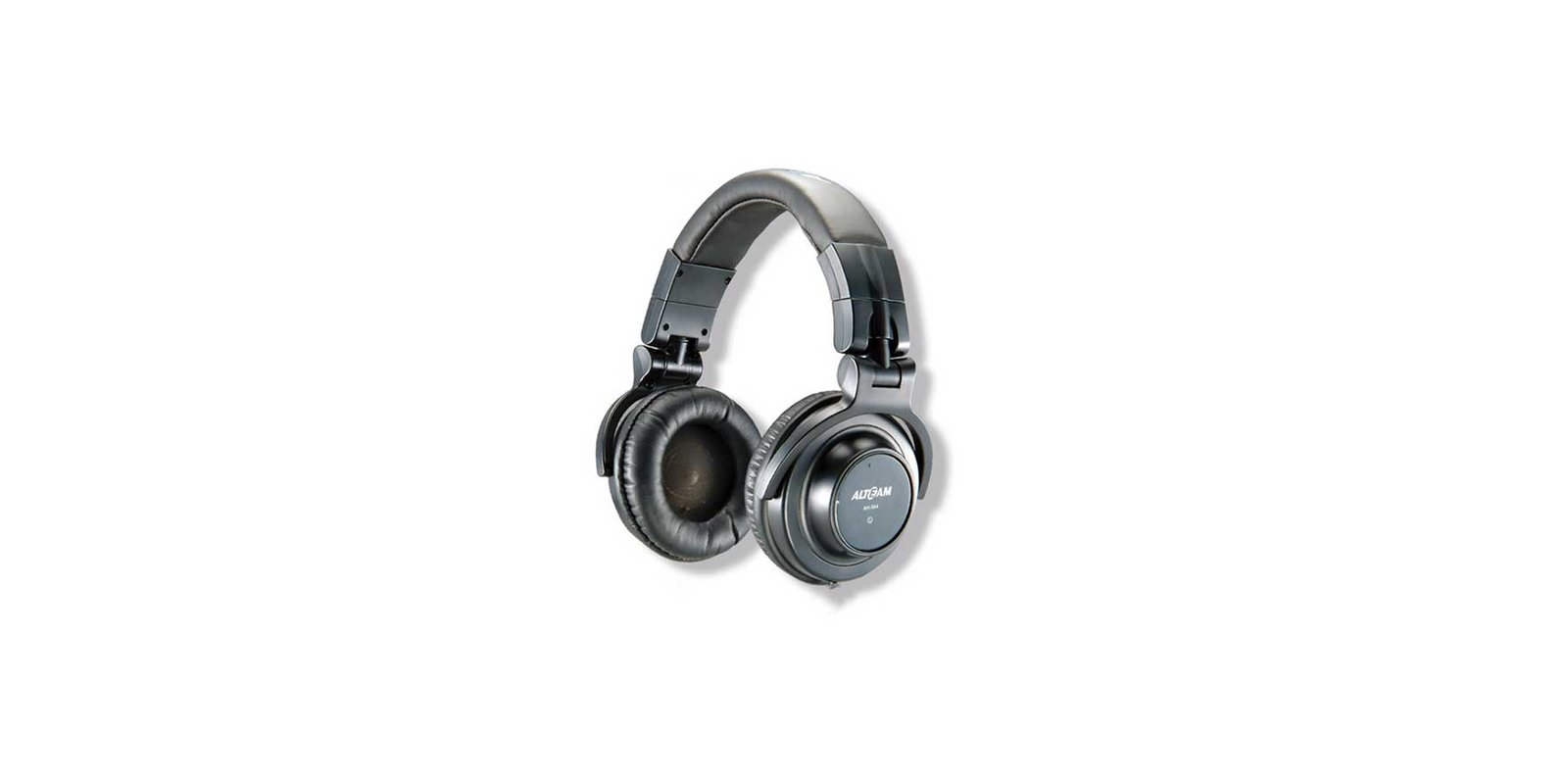

Audio Monitoring Equipment
Hear your broadcast accurately in real time before it reaches listeners.
Studio headphones · Monitor speakers
Complete FM Radio Stations
RS RADIO provides complete broadcast radio station equipment. Based on different wattages, we have corresponding packages for you to choose from. You can also consult us at any time about other combination options, add or remove equipment, such as adding STL, RDS, etc.
30W Low Power FM Transmitter Complete Radio Station Equipments
The 30W FM transmitter is ideal for community radio stations, campus broadcasting, and urban area coverage. Delivers stable, high-quality FM signal with efficient power output.
50W Low Power FM Transmitter Complete Radio Station Equipments
A 50W FM transmitter provides wide-area coverage suitable for regional radio stations, religious broadcasting organizations, and public information networks.
80W Low Power FM Transmitter Complete Radio Station Equipments
The 80W FM transmitter offers extended signal range for mid-scale broadcast operations, delivering clear audio over hilly terrain and densely populated areas.
100W Low Power FM Transmitter Complete Radio Station Equipments
100W FM transmitters are the go-to choice for licensed commercial radio stations and large community broadcasters requiring reliable city-wide signal coverage.
150W Low Power FM Transmitter Complete Radio Station Equipments
The 150W FM transmitter provides powerful regional coverage with excellent signal penetration, ideal for broadcasters serving large metropolitan or rural areas.
200W Low Power FM Transmitter Complete Radio Station Equipments
A 200W FM transmitter is engineered for professional broadcast stations requiring extensive coverage across wide geographic regions with superior audio fidelity.
300W High Power FM Transmitter Complete Radio Station Equipments
300W FM transmitters are the go-to choice for licensed commercial radio stations and large community broadcasters requiring reliable city-wide signal coverage.
500W High Power FM Transmitter Complete Radio Station Equipments
A 500W FM transmitter provides wide-area coverage suitable for regional radio stations, religious broadcasting organizations, and public information networks.
600W High Power FM Transmitter Complete Radio Station Equipments
A 600W FM transmitter provides wide-area coverage suitable for regional radio stations, religious broadcasting organizations, and public information networks.
1KW High Power FM Transmitter Complete Radio Station Equipments
A 1000W FM transmitter provides wide-area coverage suitable for regional radio stations, religious broadcasting organizations, and public information networks.
1500W High Power FM Transmitter Complete Radio Station Equipments
A 1500W FM transmitter provides wide-area coverage suitable for regional radio stations, religious broadcasting organizations, and public information networks.
2000W High Power FM Transmitter Complete Radio Station Equipments
A 2000W FM transmitter provides wide-area coverage suitable for regional radio stations, religious broadcasting organizations, and public information networks.
Page 1 of 2
Don't see the exact wattage you need? We manufacture custom power output FM transmitters tailored to your broadcast requirements.
Request a Custom Wattage TransmitterWhich Equipment Is Necessary and Which Is Optional?
Not all FM station equipment is created equal. Three items are non-negotiable -- without them, you simply cannot broadcast. The remaining six items enhance your station's quality and capabilities, and can be added over time.
| Equipment | Status | Why It Matters | Without It |
|---|---|---|---|
|
FM Broadcast Transmitter
|
Essential | Generates and amplifies your FM signal. Without a transmitter, there is no radio signal to broadcast. | No broadcast possible |
|
FM Broadcast Antenna
|
Essential | Radiates the transmitter's signal into the air. Antenna height and gain directly determine your coverage radius. | Signal cannot be radiated |
|
Coaxial Cable
|
Essential | Connects the transmitter to the antenna. The only physical link between your transmitter output and your antenna input. | Transmitter and antenna cannot connect |
|
Audio Processor
|
Recommended | Normalizes audio levels and prevents overmodulation. Without it, your broadcast may sound uneven or distorted on some radios. | Poor audio consistency |
|
Broadcast Audio Mixer
|
Recommended | Required for live programming with presenters. Lets you blend multiple audio sources in real time. Not needed for automated music-only broadcasts. | No live presenter capability |
|
Microphones
|
Recommended | Essential if you have live presenters, pastors, teachers, or announcers. Not required for automated or music-only broadcasts. | No live voice broadcasting |
|
STL System
|
Optional | Only needed when studio and transmitter are at separate locations. If your transmitter is co-located with your studio, an STL is unnecessary. | Only affects remote setups |
|
RDS Encoder
|
Optional | Adds station name and song info to listeners' radio displays. Professional and recommended for commercial stations, but not required to broadcast. | No text display on radios |
|
Monitoring Equipment
|
Optional | Helps you verify your broadcast is working correctly and catch problems early. Increasingly important as your station grows in audience and revenue. | Harder to detect outages |
Minimum Viable FM Station (3 Items)
These three items are the absolute minimum required to put an FM signal on air. A transmitter, antenna, and coaxial cable -- together, they form a complete broadcast chain.
-
FM Broadcast Transmitter
-
FM Broadcast Antenna
-
Coaxial Feeder Cable
We sell all three as a complete kit -- transmitter + antenna + cable -- at a bundled price with free shipping.

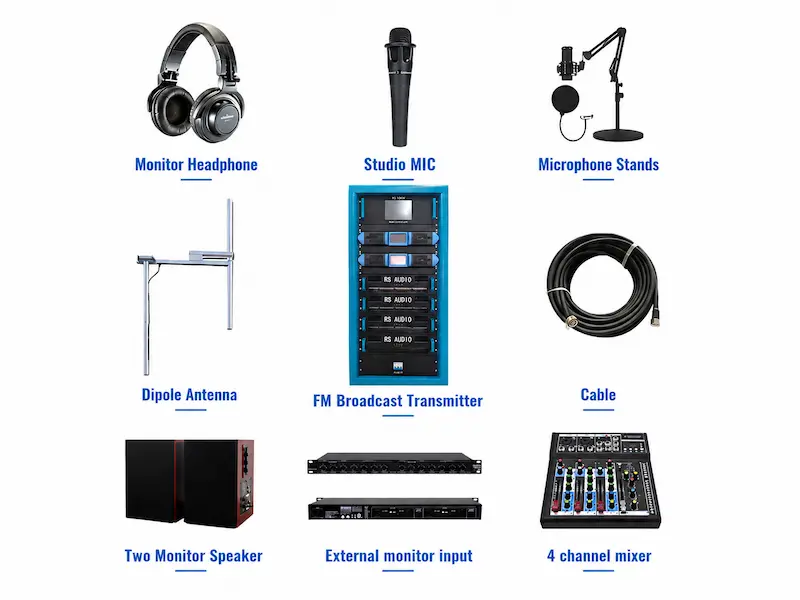

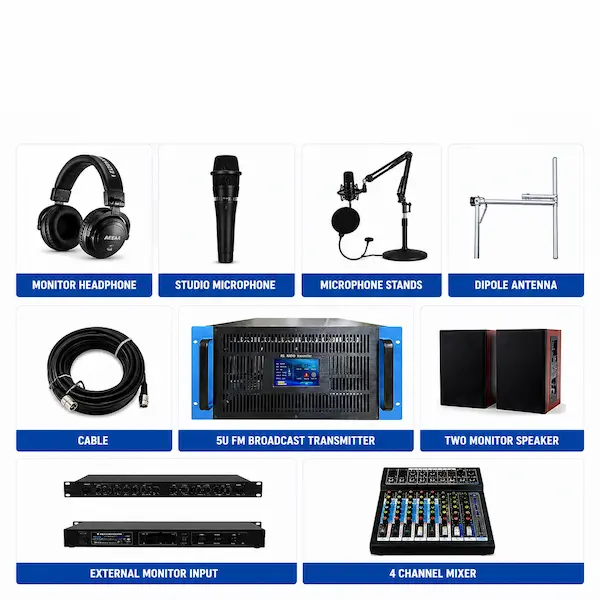

Recommended Full Station Setup (9 Items)
Everything you need to launch a professional FM broadcast station -- transmit, mix, and monitor with a complete one-box solution.
-
FM Transmitter + Antenna + Coaxial Cable
-
Audio Processor (broadcast quality)
-
Monitor Speakers
-
External Monitor Input and other equipments
Core broadcast equipment Studio production accessories
Can One Supplier Provide Everything for My FM Station?
Yes. Risheng Electronics manufactures and supplies FM transmitters, antennas, and coaxial cables -- the three essential items every FM station needs -- directly from our factory in Liaoning, China. We ship to customers in over 50 countries worldwide.
Why Buying from One Supplier Saves You Time and Money
When transmitter, antenna, and cable all come from the same source, impedance matching, power ratings, and connector types are guaranteed to work together. No compatibility guesswork.
One order, one shipment, one customs declaration. Reduces paperwork, import complexity, and the risk of components arriving at different times.
One support contact for your entire system. No finger-pointing between multiple vendors. Our engineers support you via WhatsApp group with the full system context.
We are the manufacturer -- not a reseller. You buy at source pricing without distributor markups, and can negotiate bundle pricing for complete station kits.
Warranty
Frequently Asked Questions
The minimum equipment to start an FM radio station is three items: an FM broadcast transmitter, an FM broadcast antenna, and a coaxial feeder cable to connect them. These three components form a complete broadcast chain. The transmitter generates your FM signal, the cable carries it to the antenna, and the antenna radiates it to your listeners. Everything else -- audio processors, mixers, microphones -- enhances quality but is not strictly required to put a signal on air.
Coverage distance depends on transmitter power, antenna height, and local terrain. As a general guide: 50-100W covers 5-15 km, 300W-1KW covers 20-80 km, 2KW-5KW covers 80-120 km, and 10KW+ can reach 150 km or more. Antenna height has a significant impact -- the higher the antenna, the greater the coverage for the same power level.
Yes. Risheng Electronics offers complete FM station kits that include the transmitter, antenna, and coaxial cable -- all matched to work together at your required power level. Kits are available from 50W to 2KW and above. Buying a kit is simpler than sourcing components separately, ensures compatibility, and is typically priced lower than buying individual items. We ship to most countries worldwide with free shipping.
All Risheng FM transmitters come with a 5-year warranty -- significantly longer than the industry standard of 1-2 years. During the warranty period, our engineers provide remote technical support via WhatsApp. If a transmitter has a problem, we create a group chat with you and our engineering team to diagnose and resolve the issue. Replacement parts for small components are provided free of charge (customer pays shipping).
An RDS encoder is optional -- you can broadcast perfectly well without one. However, an RDS encoder lets you display your station name, song title, and artist name on listeners' car radios and digital FM receivers. For commercial stations and stations that want a professional image, it's a worthwhile addition. For small community stations, churches, or schools, it's generally not a priority.
