Professional Equipment
80W Complete FM Radio Station Package

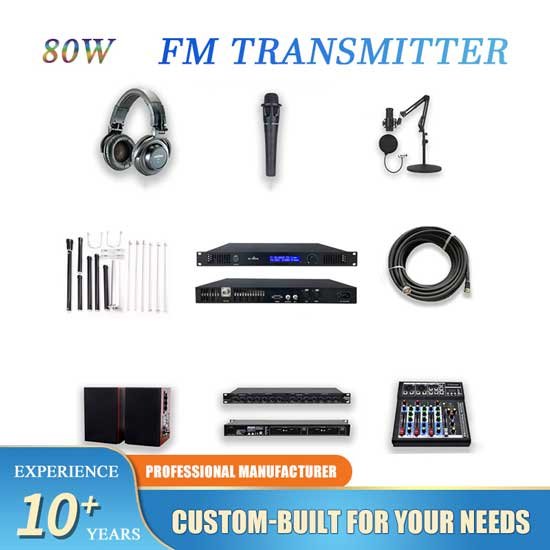

This package includes a 80W FM transmitter, 15-meter feeder cable, a FM dipole antenna, studio microphone, monitor headphones, microphone stand, 4-channel mixer, monitor speakers, and external monitor input.
Up to 80% RF efficiency
Low Power Consumption
5-Year Warranty
direct from the manufacturer
Free shipping
to most countries worldwide
FCC & CE certified
compliant for legal broadcasting
Complete Equipment
Product Introduction
80W FM Broadcasting Complete Equipment — 9 Components
1
80W Transmitter
2
FM Antenna
3
Coaxial Cable
4
4-Ch Mixer
5
Headphones
6
Speakers
7
Audio Processor
8
Microphone
9
Mic Stand
1
80W FM Transmitter
Core Broadcasting Unit
80W · 1U Compact
- Ultra-compact 1U FM transmitter serving as the core of this package
- Delivers professional-grade broadcast quality output
- Oversized MOSFET module enables continuous 24/7 operation without overheating
- Automatic temperature and SWR protection keeps your station safe at all times
- Fully compliant with FCC and CE standards, ready to broadcast out of the box
2
FM Broadcast Antenna
FM Signal Radiation
Matched for 80W
- Precisely paired with the 80W transmitter for optimal performance
- Maximizes signal coverage while maintaining a low SWR
- Ensures safe, efficient operation of the entire system
- Built with weatherproof materials suitable for rooftop or tower installation
- Includes all necessary mounting hardware for quick, reliable setup
3
Coaxial Cable
RF Signal Transmission
Low-Loss · Weatherproof
- Safely connects your transmitter to the antenna
- Low-loss design ensures minimal signal degradation over the full run length
- Durable shielding protects against interference and physical wear
- Weatherproof connectors built to withstand outdoor conditions
- Provides a stable, long-lasting connection between transmitter and antenna
Studio Equipment
Components 4 – 94
4-Channel Mixer
Audio Mixing Interface
- Multiple mono microphone input configurations available
- High-quality +48V phantom power
- High and low equalizers on each channel
- One AUX send per channel with pre/post-fader switching
- Built-in 10 effects: reverb, chorus, flanger, delay, pitch shifter
- Tap function and storable parameter settings
- Built-in high-quality MP3 / U-DISK MP3 input
- Peak signal indication on all channels
- Pre-fader monitoring options
- Independent headphone monitoring and level display
5
Monitor Headphones
Studio Audio Monitoring
Wearing Mode
Over-ear
Type
Wired
Microphone
No
Freq. Response
18–5000 Hz
Impedance
32 Ohms
SPL
115 dB SPL/V
Distortion
<1% maximum
Input Power
200 mW
Leather Ear Cushions
Adjustable Headband
Lightweight
6
Two Monitor Speakers
Studio Reference Monitoring
The package includes two monitor speakers for studio audio monitoring.
Woofer
5.25" magnetic steel
Tweeter
1" magnetic
Power
50 W
Peak Power
70 W
Cabinet
9 mm all-wood
Voltage
220 V / 110 V
Physical Crossover
Treble Adjust
Bass Adjust
7
Audio Processor
Signal Processing & Control
- Reference-class 2-channel expander/gate/compressor/peak limiter
- Integrated dynamic enhancer, de-esser, and low contour filter
- Switchable IKA program-adaptive compression circuitry
- Combines hard-knee and soft-knee compression characteristics
- Adjustable dynamic enhancer with level meter
- IGC (Interactive Gain Control) peak limiting circuitry
- Clipper and program limiter for signal peak protection
- Switchable de-esser for reducing vocal sibilance
- IRC expander/gate circuitry for noise suppression
- Auto/manual adjustable attack and release times
8
Studio Microphone
Voice & Broadcasting Input
The wired dynamic microphone provides a dedicated audio input for voice and broadcasting applications.
Microphone Type
Dynamic
Connection
Wired
Channels
1
Polar Pattern
Cardioid
9
Microphone Stand
Flexible Mic Mounting
- Four external springs
- Cantilever fastening knob
- Upper two tubes and lower three tubes for increased stability
- Suitable for horizontal and vertical installation
- Hollow support structure — microphone cable passes through boom
- Chassis mount and standard accessories included
Complete Solution
Complete 80W FM Broadcasting Solution
This complete 80W FM broadcasting kit combines the essential equipment required for both studio audio production and FM signal transmission.
Microphone
Mixer
Audio Processor
Headphones
Monitor Speakers
80W FM Transmitter
Feeder Cable
Dipole Antenna
Mic Stand
