1500W Complete FM Radio Station Package

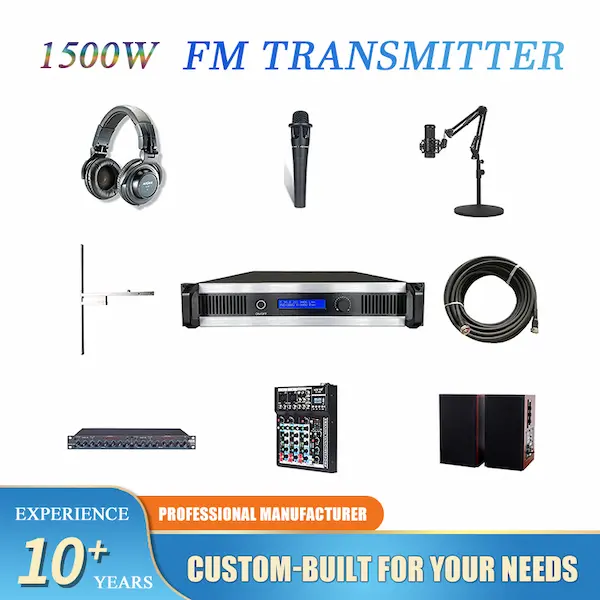

This package includes a 1500W FM transmitter, 30-meter 1/2" coaxial cable, 1-bay dipole antenna, studio microphone, monitor headphones, microphone stand, 4-channel mixer, monitor speakers, and external monitor input.
Product Introduction
1500W FM Broadcasting Complete Equipment — 9 Components
1500W FM Transmitter
Core Broadcasting Unit
The 1500W FM transmitter is the core of this complete FM broadcasting kit, providing stable and efficient RF power output for professional radio broadcasting.
General Features
Dipole Antenna
FM Signal Radiation
The dipole antenna is designed for professional FM broadcasting across the 87.5–108 MHz frequency range. With 50-ohm impedance, vertical polarization, and up to 2.0 dB gain.
Technical Specifications
| Specification | Details |
|---|---|
| Frequency Range | 87.5–108 MHz |
| Impedance | 50 Ohm |
| Connector | NK |
| VSWR | <1.35:1 Max |
| Polarization | Vertical |
| Dimensions | 1400 × 900 × 50 mm |
| Weight | 4 kg with mounting hardware |
| Gain | 2.0 dB Max |
| Max. Power Handling | 2 kW |
30m 1/2" Feeder Cable
RF Signal Transmission
The kit includes one 30-meter 1/2" feeder cable for connecting the FM transmitter to the antenna.
Studio Equipment
Components 4 – 94-Channel Mixer
Audio Mixing Interface
- Multiple mono microphone input configurations available
- High-quality +48V phantom power
- High and low equalizers on each channel
- One AUX send per channel with pre/post-fader switching
- Built-in 10 effects: reverb, chorus, flanger, delay, pitch shifter
- Tap function and storable parameter settings
- Built-in high-quality MP3 / U-DISK MP3 input
- Peak signal indication on all channels
- Pre-fader monitoring options
- Independent headphone monitoring and level display
Monitor Headphones
Studio Audio Monitoring
Two Monitor Speakers
Studio Reference Monitoring
The package includes two monitor speakers for studio audio monitoring.
Audio Processor
Signal Processing & Control
- Reference-class 2-channel expander/gate/compressor/peak limiter
- Integrated dynamic enhancer, de-esser, and low contour filter
- Switchable IKA program-adaptive compression circuitry
- Combines hard-knee and soft-knee compression characteristics
- Adjustable dynamic enhancer with level meter
- IGC (Interactive Gain Control) peak limiting circuitry
- Clipper and program limiter for signal peak protection
- Switchable de-esser for reducing vocal sibilance
- IRC expander/gate circuitry for noise suppression
- Auto/manual adjustable attack and release times
Studio Microphone
Voice & Broadcasting Input
The wired dynamic microphone provides a dedicated audio input for voice and broadcasting applications.
Microphone Stand
Flexible Mic Mounting
- Four external springs
- Cantilever fastening knob
- Upper two tubes and lower three tubes for increased stability
- Suitable for horizontal and vertical installation
- Hollow support structure — microphone cable passes through boom
- Chassis mount and standard accessories included
Complete 1500W FM Broadcasting Solution
This complete 1500W FM broadcasting kit combines the essential equipment required for both studio audio production and FM signal transmission.
