FM Broadcast Antennas
We provide professional FM broadcast dipole antenna systems, specifically for radio stations, broadcasters, and communication providers. Durable, high-gain, and built for continuous operation.
Fill in your requirements and our team will respond within 24 hours.
FM Broadcast Antenna Categories
Choose the right antenna configuration for your station's power, coverage, and mounting requirements.

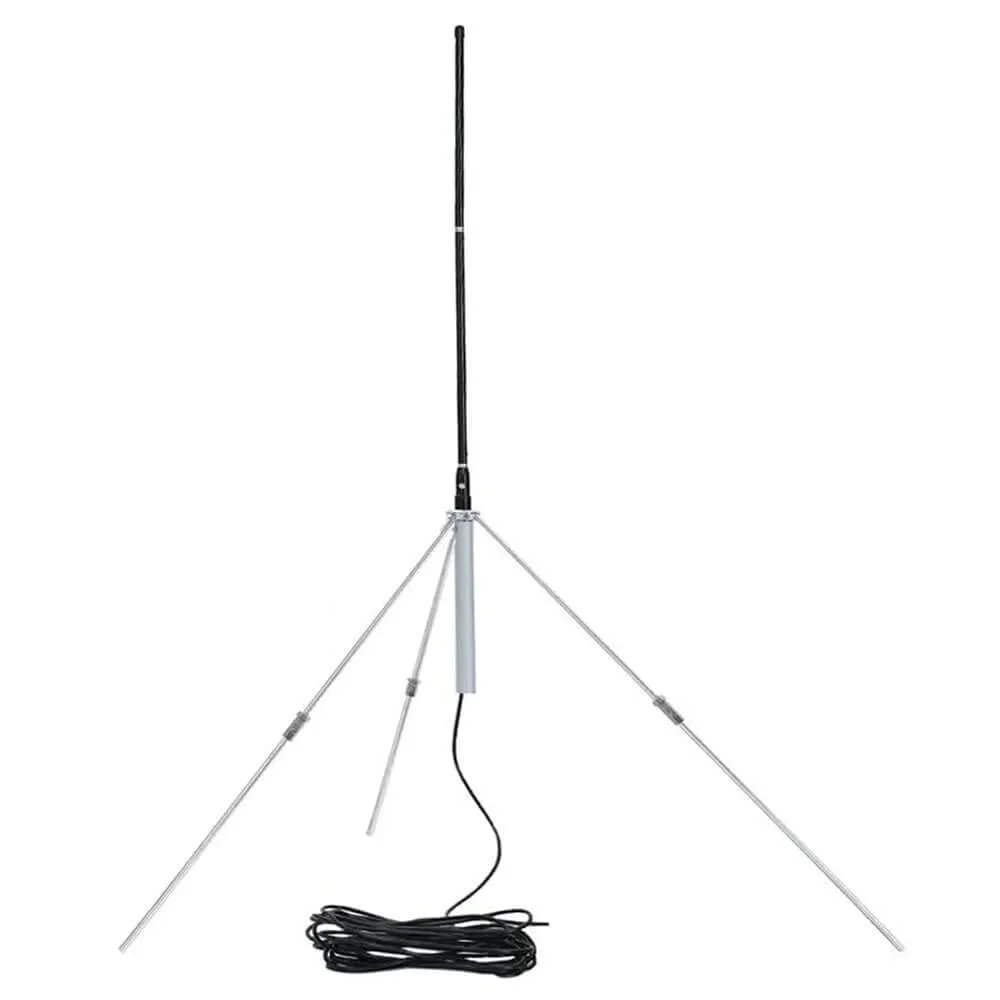

50–80W FM Dipole Antennas
Entry-level half-wave dipole antennas optimized for low-power community FM stations, campus radio, and short-range religious broadcasting.
- Frequency Range 87.5–108 MHz, VSWR ≤ 1.5:1 across full FM band
- Gain & Pattern 2.15 dBi gain, 360° omnidirectional horizontal radiation for uniform area coverage
- Build & Mounting Aluminum alloy element, N-type female connector, weight < 1.5 kg — fits standard 38–51 mm mast clamps
100–200W FM Broadcast Antennas
FM dipole antennas delivering improved mobile-receiver performance for schools, churches, and small commercial FM stations.
- Gain 3 dBd gain — reduces multipath fading by up to 30%
- Impedance & Connector 50 Ω input, 7/16 DIN female — direct connection to 1U/2U transmitters with no matching network required
- Weather Rating IP65 sealed radome, hot-dip galvanized mounting hardware, rated for winds up to 150 km/h
300W–2kW Single-Bay FM Antennas
Heavy-duty single-bay panel antennas engineered for professional FM stations running 2U or touch-screen transmitters in continuous-duty broadcast environments.
- Power Handling & Efficiency Rated to 2 kW continuous power; insertion loss < 0.3 dB — maximises effective radiated power (ERP)
- Gain & Coverage 5 dBd gain, 360° horizontal pattern — typical coverage radius 30–60 km at 2 kW ERP
- Structural Durability 6061-T6 aluminum alloy body, stainless steel hardware, fiberglass radome — withstands ice load & 180 km/h winds

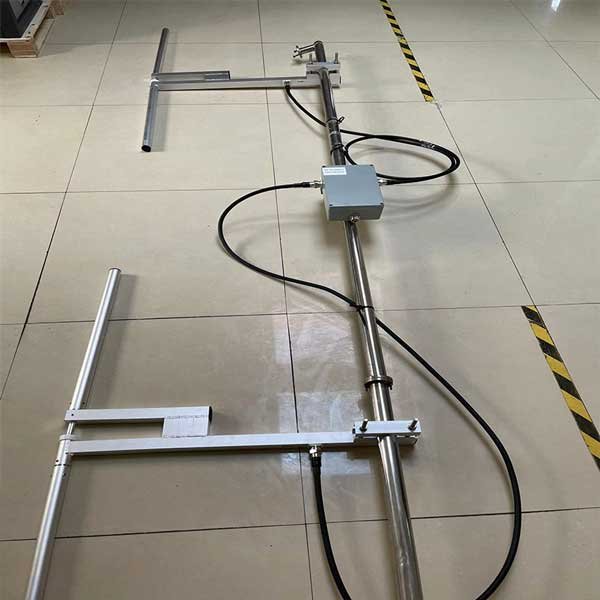

2-Bay FM Dipole Antenna Systems
Two vertically stacked dipoles fed through a precision-matched 2-way power divider, delivering 3 dB more gain than a single dipole — ideal for medium-power regional stations.
- System Gain & Power ~5.15 dBi stacked gain; power divider rated to 2 kW — amplitude balance ≤ 0.5 dB between bays
- Signal Distribution Included 2-way hybrid splitter maintains phase coherence < 2° — eliminates pattern distortion common in low-cost systems
- Installation Pre-aligned and factory-phased; mounts on 60–89 mm pipe with supplied universal clamps — no special tools needed

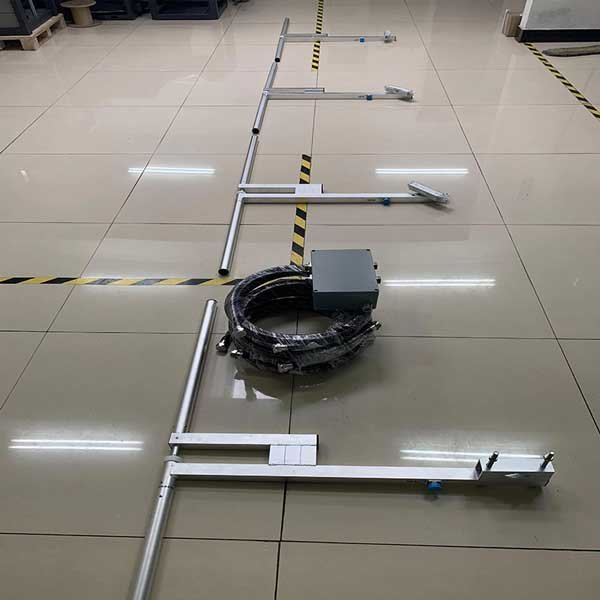

4-Bay FM Dipole Antenna Systems
Four-element collinear array with integrated 4-way power divider, providing 6 dB gain over a single dipole — the preferred choice for high-power regional and national FM stations.
- System Gain & ERP ~8.15 dBi gain; at 2 kW transmitter power, achieves ERP equivalent to a 13 kW single-dipole system
- Power Divider Specs 4-way hybrid combiner, 50 Ω, isolation ≥ 20 dB between ports — protects transmitter from antenna mismatch
- Coverage & Wind Load Typical radius 60–100 km; engineered to TIA-222-H structural standard, wind survival 200 km/h

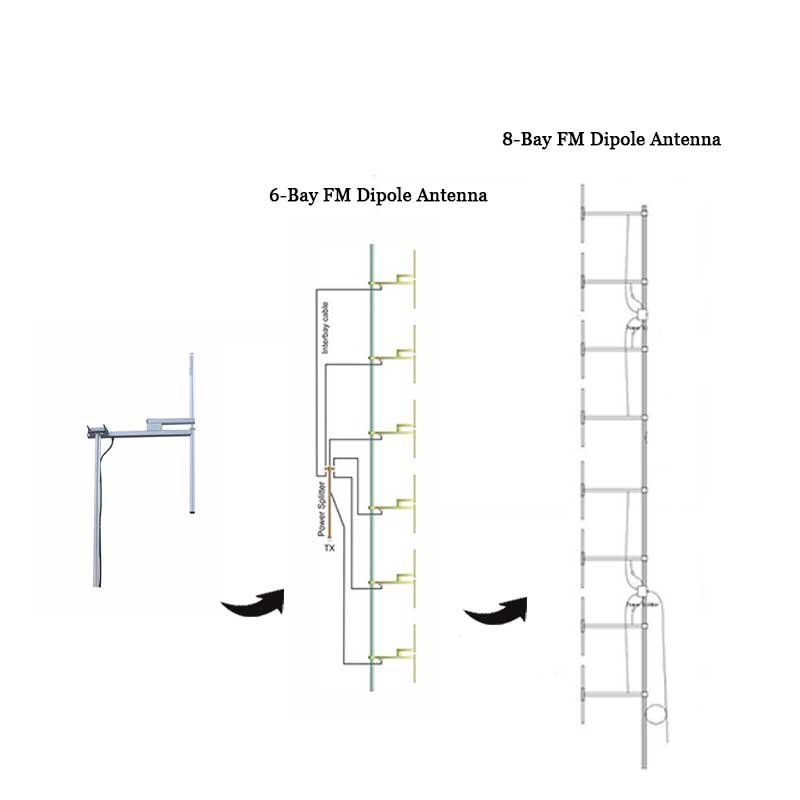

Custom Multi-Bay FM Antenna Systems
Fully engineered antenna solutions tailored to your exact frequency, ERP target, tower geometry, wind zone, and regulatory constraints — from concept to on-site commissioning support.
- Design Flexibility 1–8 bays, omnidirectional or directional patterns, up to 20 kW power handling — any frequency within 87.5–108 MHz
- Engineering Support RF simulation report, structural load calculation, and licensed-to-site wiring diagram provided before production
- Certifications & QA FCC & CE compliant materials; each system factory-tested with VNA sweep — certificate of conformance shipped with unit
Built for Broadcast-Grade Reliability
High Power Handling
Engineered to sustain continuous transmission from 50W to 20kW without degradation.
Wide Coverage Patterns
Omnidirectional and directional options for precise regional signal shaping.
Weatherproof Structure
Corrosion-resistant materials rated for extreme temperatures, wind, and precipitation.
Custom Frequency Tuning
Precision-tuned to your exact frequency within the 88-108 MHz FM broadcast band.
Why Choose Our FM Broadcast Antennas
Source Manufacturer Pricing
Direct factory pricing for single units and bulk orders, with no middleman markup.
Full System Compatibility
Antennas designed to pair seamlessly with our transmitters, cables, and mounting hardware.
Certified Quality Standards
FCC and CE certified designs, tested for consistent performance under load.
Worldwide Technical Support
Installation guidance and troubleshooting via Email, WhatsApp, and online meetings.
5-Year Warranty Coverage
Extended warranty protection to safeguard your broadcast infrastructure investment.
Custom Engineering On Request
Frequency, structural, and mounting customization for unique site requirements.
Ideal Applications
Frequently Asked Questions
What frequency range do your FM antennas cover?
Our antennas are tuned for the standard 88-108 MHz FM broadcast band, with custom tuning available on request.
Can I order a single antenna or only bulk quantities?
As the source manufacturer, we support both single-unit purchases and large-scale bulk orders for distributors.
Do you provide installation support?
Yes. Our engineering team offers remote installation guidance via Email, WhatsApp, and online meetings.
Can antennas be customized for specific site conditions?
Absolutely. We offer custom frequency, structural, and mounting interface design for unique installation requirements.
