300W FM Broadcast Transmitter Kit for Radio Station

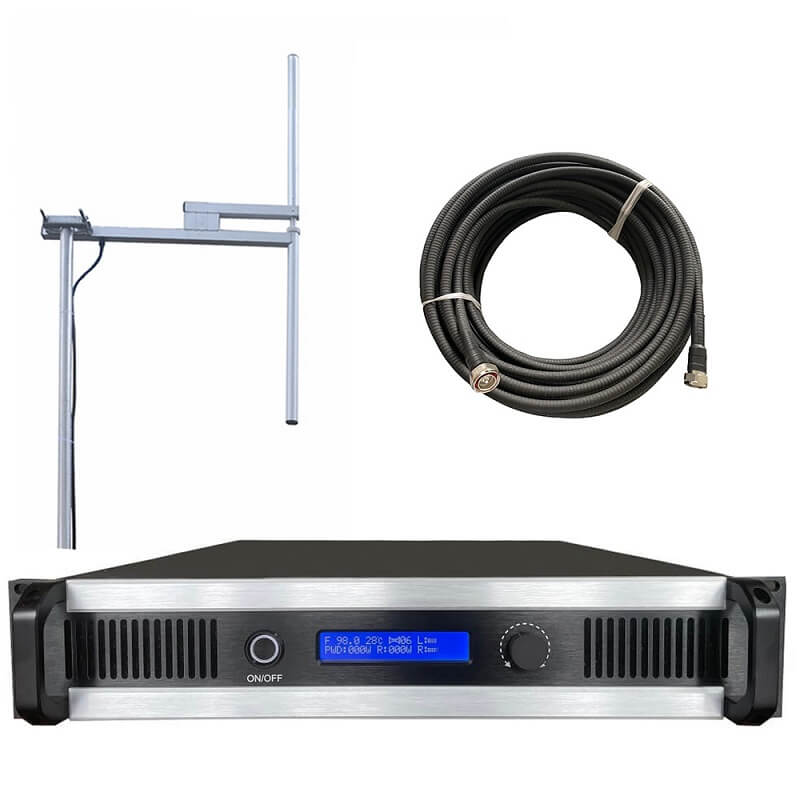

The 300W FM Broadcast Transmitter Kit is a complete basic transmission solution, including a 300W FM transmitter, a 30-meter 1/2" coaxial cable, and a 1-bay dipole antenna.
Product Introduction

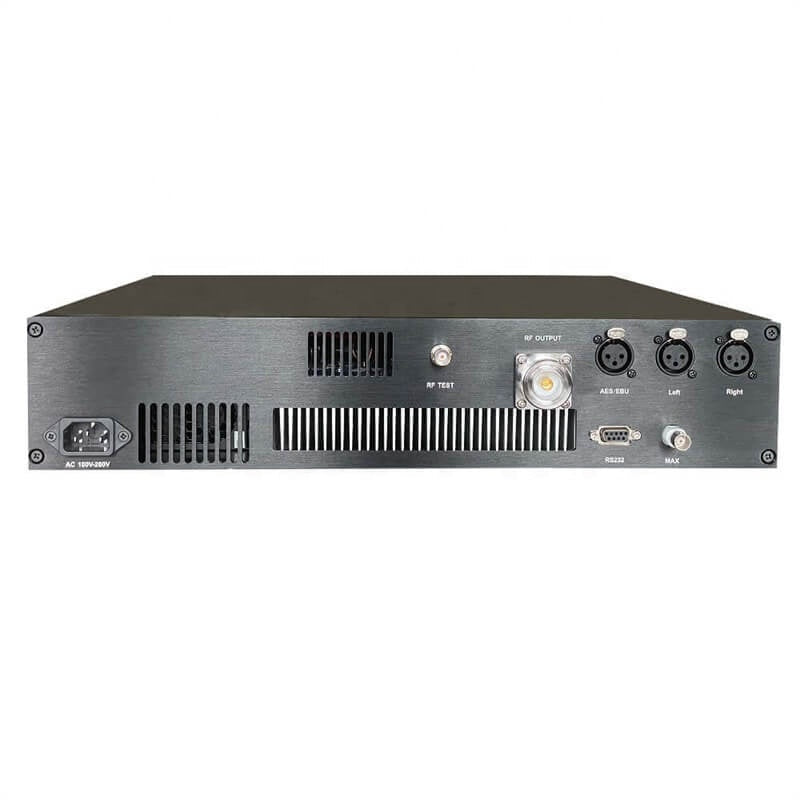

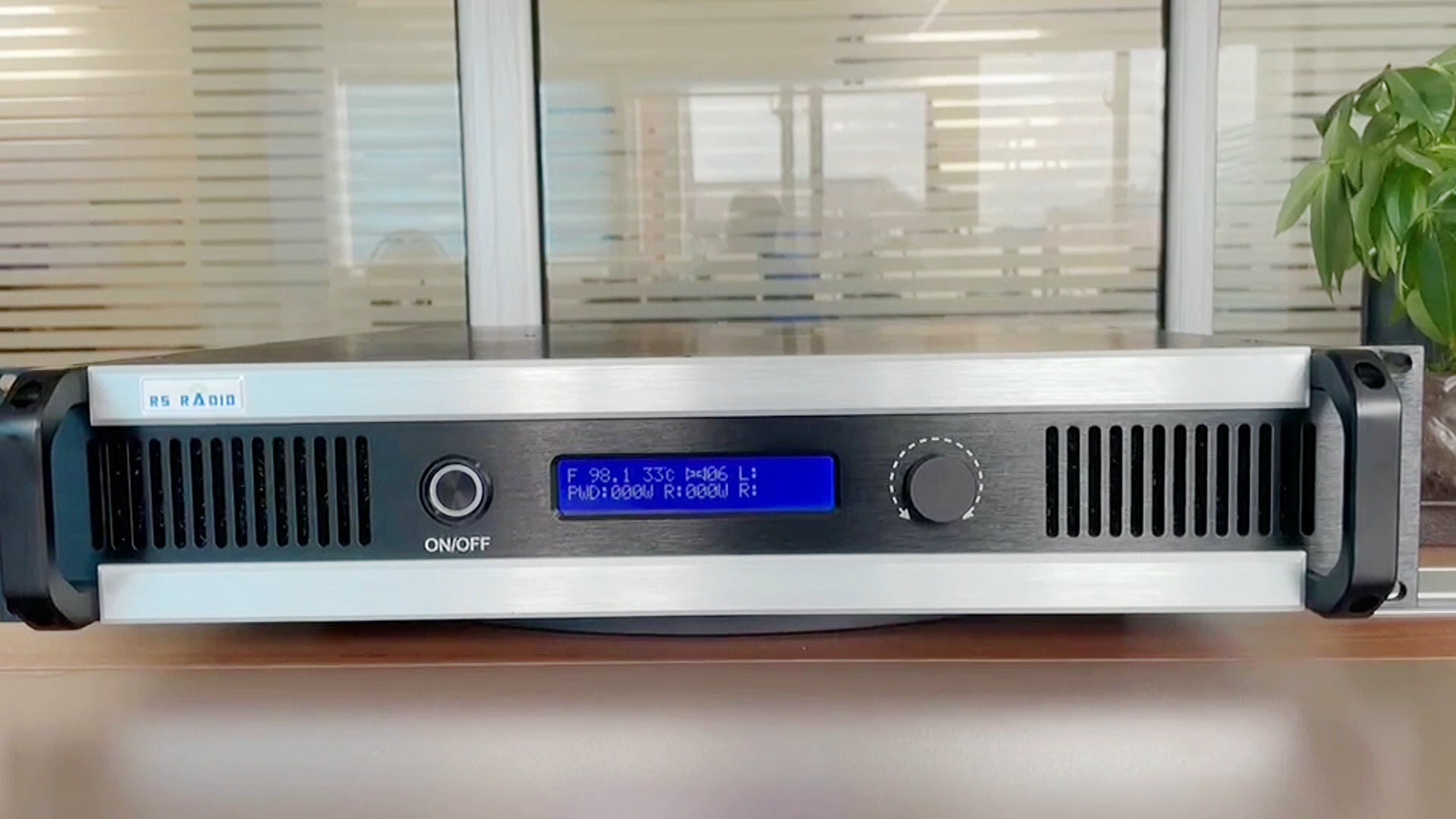

1. 300W FM Transmitter
The 300W FM transmitter is the core of this broadcast kit, featuring advanced LDMOS technology for efficient and stable RF power output. Built-in overheat and SWR protection, together with efficient heat dissipation, helps ensure reliable long-term operation for radio station applications.

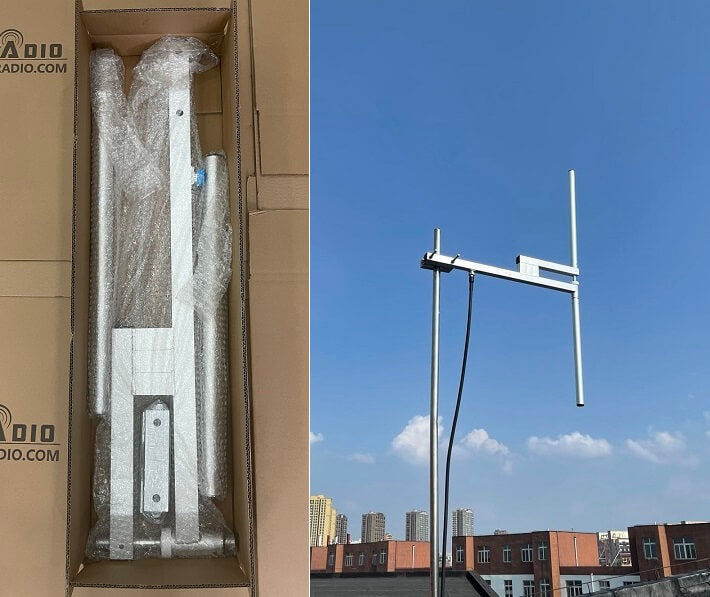

2. 1-Bay Dipole Antenna
The 1-bay dipole antenna is designed for professional FM broadcasting across the 87.5–108 MHz frequency range. With 50-ohm impedance, vertical polarization, and up to 2.0 dB gain, it provides a practical antenna solution for the 300W FM transmitter.
| Specification | Details |
|---|---|
| Frequency Range | 87.5–108 MHz |
| Impedance | 50 Ohm |
| Connector | NK |
| VSWR | <1.35:1 Max |
| Polarization | Vertical |
| Dimensions | 1400 × 900 × 500 mm |
| Weight | 4 kg with mounting hardware |
| Gain | 2.0 dB Max |
| Max. Power Handling | 2 kW |

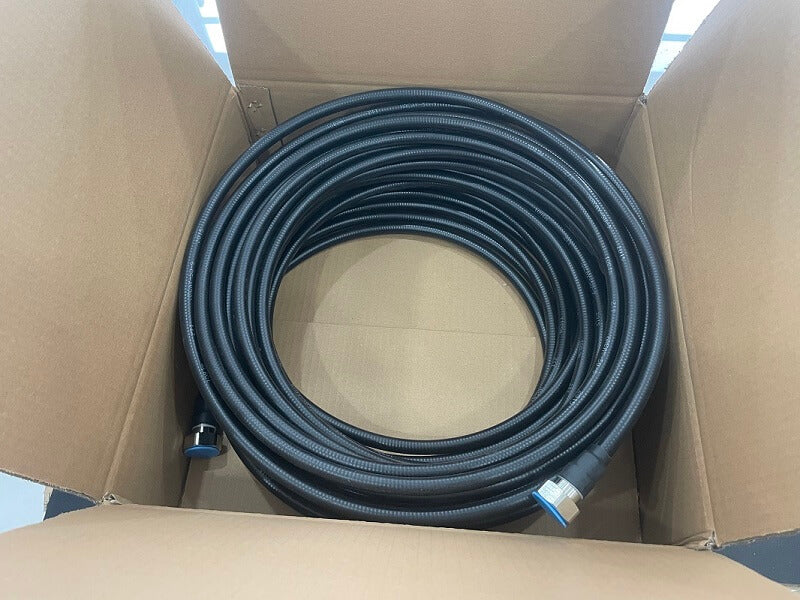

3. 30m 1/2" Feeder Cable
The kit includes one 30-meter 1/2" feeder cable for connecting the FM transmitter to the antenna. The low-loss coaxial cable is sized for professional FM broadcasting applications and provides a reliable RF connection between the transmitter and antenna system.
Send Inquiry
Complete 300W FM Radio Station Package
A transmitter alone won't broadcast. You need three essential components to get on air: transmitter + antenna + coaxial cable. And we also offer complete packages so you get everything from one manufacturer at the best price.
