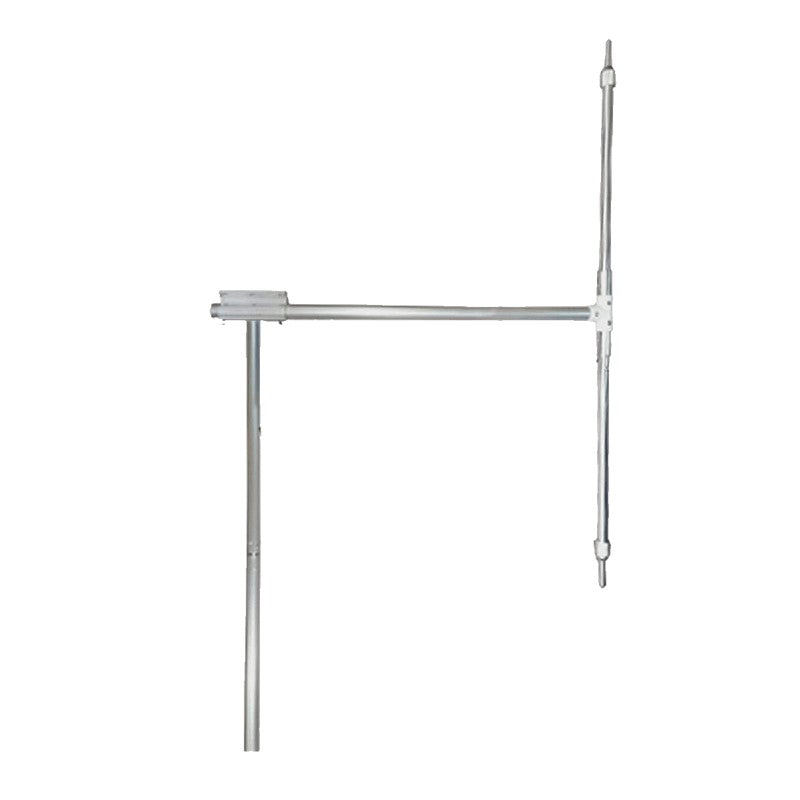

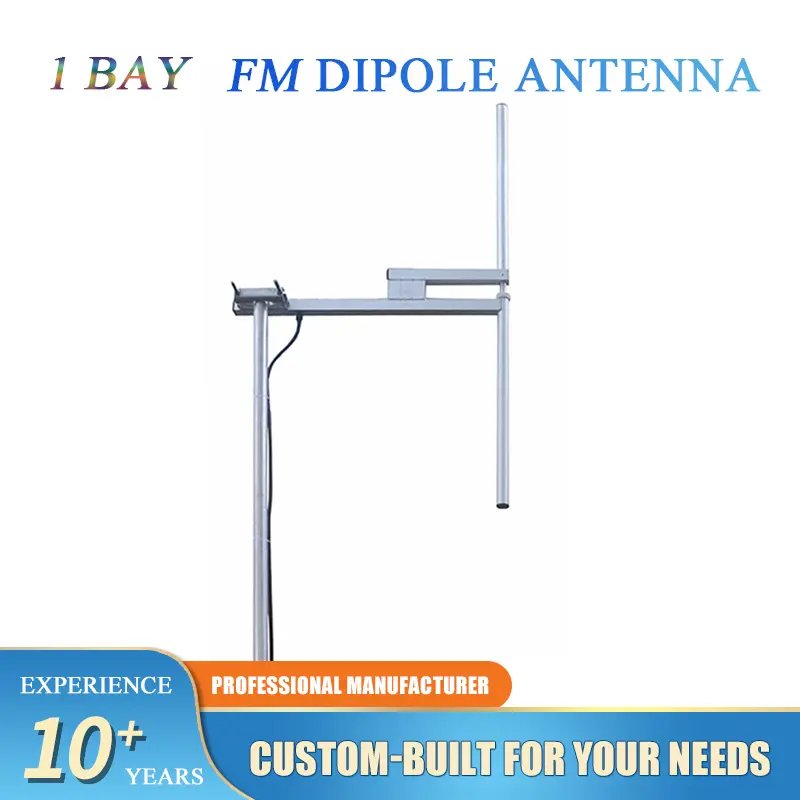

1-bay antenna for 100w 150w 200w fm transmitter
Parameter -
Frequency range: 88~108MHz
-
Low input impedance: 50 Ω
-
standing wave ratio <1.5
-
gain: 3.5 dBi
-
polarization mode: vertical
-
maximum input power: 200W
-
horizontal 3dB beam width: 360°
-
vertical 3dB beam width: 73°
-
height: 960MM
-
Radiation element material: aluminum alloy
-
connector: TNC(You can also choose BNC/SL16/ NJ/SMA If you leave a message)
-
Cable: 33 ft,SYV - 50-5 pure copper wire(If you need any other length, please contact me)
-
Low antenna support bar diameter: Φ30 ~ Φ40 mm
-
You can adjust the frequency
